From lighting plan set to review-ready takeoff.

Test it on your planSee how it works
E1.1 · Reflected Ceiling Plan — Level 01Scanning sheet E1.1 — detecting fixtures…35 fixtures · 6 typesReviewed 0/36

A lighting takeoff is more than counting symbols.

Match plan symbols to fixture types

Every symbol on the RCP tied to its schedule entry — variants included.

Review exceptions and discrepancies

Conflicts and unusual conditions surface for your estimator to call.

Move approved quantities into the quote

Numbers your estimator reviewed and signed off on.

A faster first pass, with your estimator in control.

  1. 01

    Upload

    Add the reflected ceiling plans and lighting fixture schedule from the project — architectural PDF, any sheet count, any revision.

  2. 02

    Review

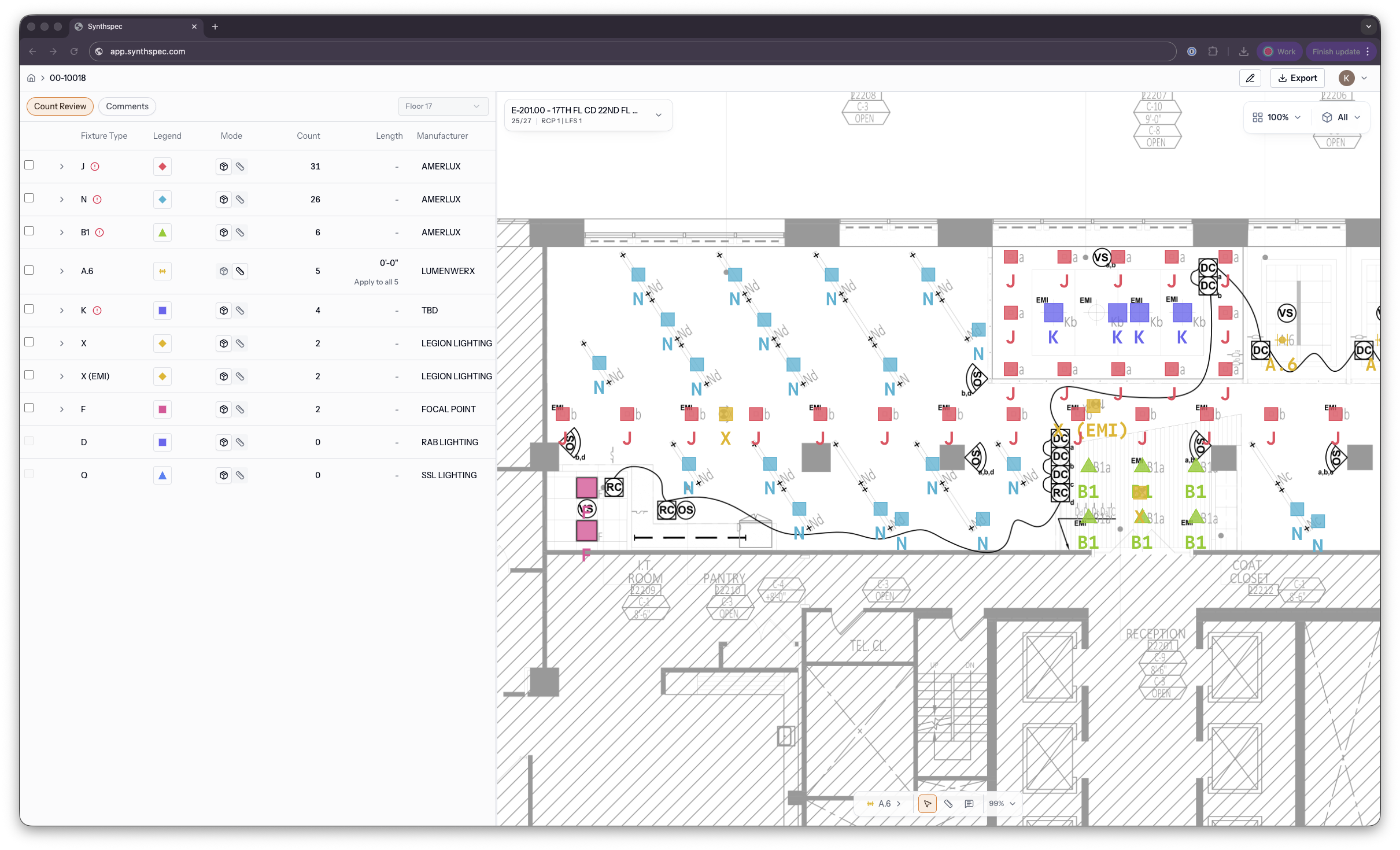

    Synthspec extracts the schedule, counts fixtures by type, and presents the result for estimator review and correction.

  3. 03

    Export

    Approve the takeoff and export structured quantities for the next step in your workflow.

Built around the lighting-distributor workflow.

Lighting-specific

RCPs, fixture schedules, types, quantities, exceptions — nothing else.

Faster to verify

A first pass your estimator can verify fast — not just an answer fast.

Estimator-controlled

Review matches, correct exceptions, add misses, approve the output.

Fits the handoff

Structured quantities that drop into your existing quoting workflow.

Reads the documents your estimator reconciles.

What goes in

Reflected ceiling plans

Vector or scanned, any sheet count — rotated sheets included.

Lighting fixture schedules

Base types, lengths, variants, and EM tags — read even when the schedule is messy.

Revised sets and addenda

Changes surfaced. Work your estimator already reviewed stays reviewed.

What comes out

Counts by type and sheet

Every detected location reviewable on the plan before anything exports.

Variants, separated

EM, EMB, and EM-GEN read as their own types — never lumped into base counts.

Structured CSV

Quantities ready for the quoting workflow. No re-typing.

Marked-up PDF

The count, shown on the plan, ready for the customer.

Prove it on a project you already know.

Choose a recently completed project with a verified takeoff — we’ll run the original plan set through Synthspec and compare the complete workflow.

Bring a completed plan set

Run the numbers your CFO will ask about.

Incremental gross profit from answering more bid invitations with the team you have, computed on the same model we use with distributors.

Your desk, your numbers

%
%
$
Scenario
Assumptions
%

more responses from the same team

%

applies to every bid you send

%

we start with a conservative 18%

Estimated incremental gross profit / year

$607.5K

at the Expected scenario, on top of today’s $9M quoted revenue

Conservative$336.2KExpected$607.5KOptimistic$988.2K
≈ 60extra bids your team could answer / year
≈ 23additional wins / year at your win rate
≈ 1.0estimators’ worth of bid capacity — without hiring
$1,767estimator payroll behind every response today

Today: ≈ 240 responses/yr · ≈ 60 wins/yr · invitations you can’t answer are the ceiling Synthspec lifts.

Get your tailored business case →

Directional estimate for your planning, not a quote or a commitment.

The questions an estimator actually asks.

What does Synthspec do today?
Synthspec helps turn reflected ceiling plans and lighting fixture schedules into a structured fixture takeoff. It extracts schedule information, counts fixtures by type, and provides a workflow for reviewing, correcting, and exporting the result.
Does Synthspec replace an estimator?
No. Synthspec handles repetitive first-pass work and helps organize the result. An experienced estimator remains responsible for reviewing the project, resolving exceptions, and approving the takeoff.
How accurate is it?
Performance varies with drawing quality, notation, project complexity, and fixture type. During the walkthrough, we evaluate Synthspec on a completed project supplied by your team and measure the reviewed result — including correction time and errors that could materially affect the bid.
What files do you need?
The workflow is designed around PDF reflected ceiling plans and lighting fixture schedules. Exact file requirements and supported conditions are confirmed during the walkthrough.
What happens when a drawing is unclear?
Your estimator reviews and corrects uncertain or incorrect results in the product. Your feedback helps us improve how these cases are detected and handled.
How is our project data used?
Drawing sets and project data are stored isolated per customer, with access controls, and never shared across customers. Data-use terms — storage, retention, deletion, and any model-training use — are set out in our agreement before you upload anything, and we're happy to walk your team through them first.
What does it cost?
Pricing is scoped with each team before kickoff — scope, success criteria, and support agreed together during the walkthrough.
Custom evaluation

See what Synthspec can do for your estimating team.

Answer four quick questions. We’ll recommend the right evaluation based on your takeoff volume and workflow.

What happens nextA recommended next step — a project evaluation, tailored walkthrough, or pricing follow-up — based on your answers.
Time commitmentAbout 45 seconds. No generic sales deck — and no plan upload required yet.
Built with lighting industry operators.Software and machine-learning experience, plus hands-on lighting takeoff, distribution, operations, and quoting.
